ASME B16.47 Series B Class 300 Blind Flange
/ ASME / ANSI B16.47

ASME B16.47 Series B Class 300 Blind Flange

Dimensions: NPS 26" to NPS 60", Customized Sizes Available
Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Standard: ASME B16.47 Series B
Pressure Class: Class 300
Flange Type: Blind Flange
Flange Face Type: Raised Face (RF), Flat Face (FF), RTJ upon request
Connection: Bolted Connection
Manufacturing Process: Forging and Machining
Product Description

ASME B16.47 Series B Class 300 Blind Flange

ASME B16.47 Series B Class 300 Blind Flange

In line with ASME standards, HONGKAI offers B16.47 Series B Class 300 Blind Flanges. The table below shows the exact sizes of the flanges. When HONGKAI makes flanges, we make sure that they are exactly the right size according to the ASME standard. You can use these flanges in the oil and gas, petrochemical, and power generation industries.

We also offer custom services to meet the needs of customers who need different types of flanges and holes. Please don’t hesitate to get in touch with our professional team if you have specific technical or design needs. We will do our best to meet your needs.

Tags: ASME B16.47, Blind Flanges, Class 75, Series B

Inquiry/Request Sample For Free

Customized Flanges

ASME B16.47 Series B Class 300 Blind Flange

Class 300 dimensions | ASME B16.47 Series B Flange

Nominal Pipe Size Outside Diameter (O) Bolt Circle (W) Raised Face Diameter (R) Number of Holes Diameter of Holes Minimum Thickness (T) Approximate Weight (lbs)
26 34.12 31.62 29.00 32 1.38 3.50 905
28 36.25 33.75 31.00 36 1.38 3.50 1023
30 39.00 36.25 33.25 36 1.50 3.69 1250
32 41.50 38.50 35.50 32 1.62 4.06 1556
34 43.62 40.62 37.50 36 1.62 4.06 1719
36 46.12 42.88 39.75 32 1.75 4.06 1920
38 48.12 44.88 41.75 36 1.75 4.38 2257
40 50.12 46.88 43.88 40 1.75 4.56 2550
42 52.50 49.00 46.00 36 1.88 4.69 2875
44 54.50 51.00 48.00 40 1.88 5.00 3305
46 57.50 53.75 50.00 36 2.00 5.12 3766
48 59.50 55.75 52.25 40 2.00 5.31 4183
50 61.50 57.75 54.25 44 2.00 5.50 4629
52 63.50 59.75 56.25 48 2.00 5.68 5096
54 65.88 62.12 58.25 48 2.00 5.88 5679
56 69.50 65.00 60.50 36 2.38 6.18 6642
58 71.94 67.44 62.75 40 2.38 6.38 7347
60 73.94 69.44 65.00 40 2.38 6.56 7980
  • All dimensions are in inches.
  • These flanges will be furnished with a 1/16″ raised face unless otherwise specified. For more alternate flange facings, please click here!

 Blind Flange

ASME B16.47 Series B Class 300 Blind Flange



‌A blind flange, also known as a blind plate, is a flange without main hole, used to close the end of a pipe system or as an end cover for equipment such as valves and pumps. ‌A blind flange has the functions of blocking the end of a pipe and facilitating the removal of debris from the pipe. Similar to the head and pipe cap, a blind flange can also serve as an isolation and cut-off function, but it has good sealing performance and is suitable for systems that require complete isolation‌.





The structure of a blind flange includes a round or square metal sheet, one side of which has a flange surface with an outer diameter and inner diameter matching the corresponding pipe size and with several bolt holes; the other side is a smooth sealing surface. When installed on the pipe, it is fixed to the adjacent flange by bolts and nuts to form a completely closed break‌.



learn more

ASME B16.47 FLANGE CLASSES

Choose The Pressure Class Below​​​​​​​

About HongKai

​​​​​​​ASME B16.47 Series B Class 300 Blind Flange

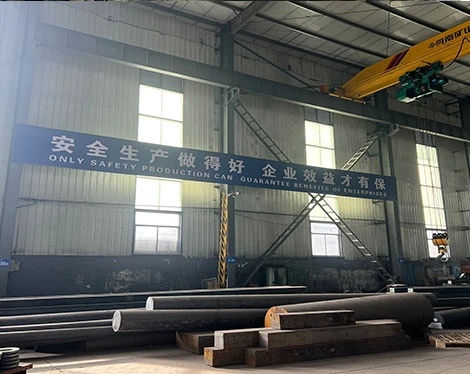

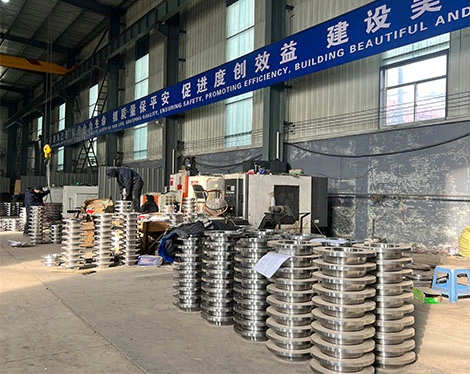

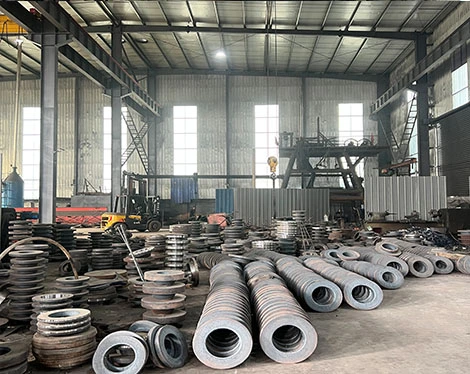

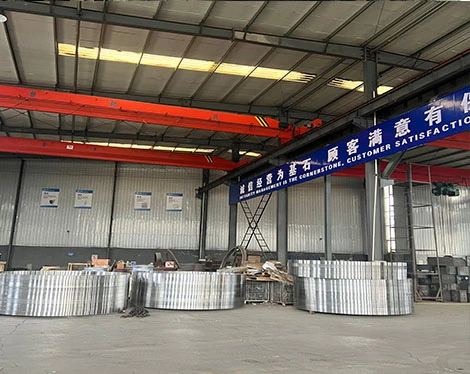

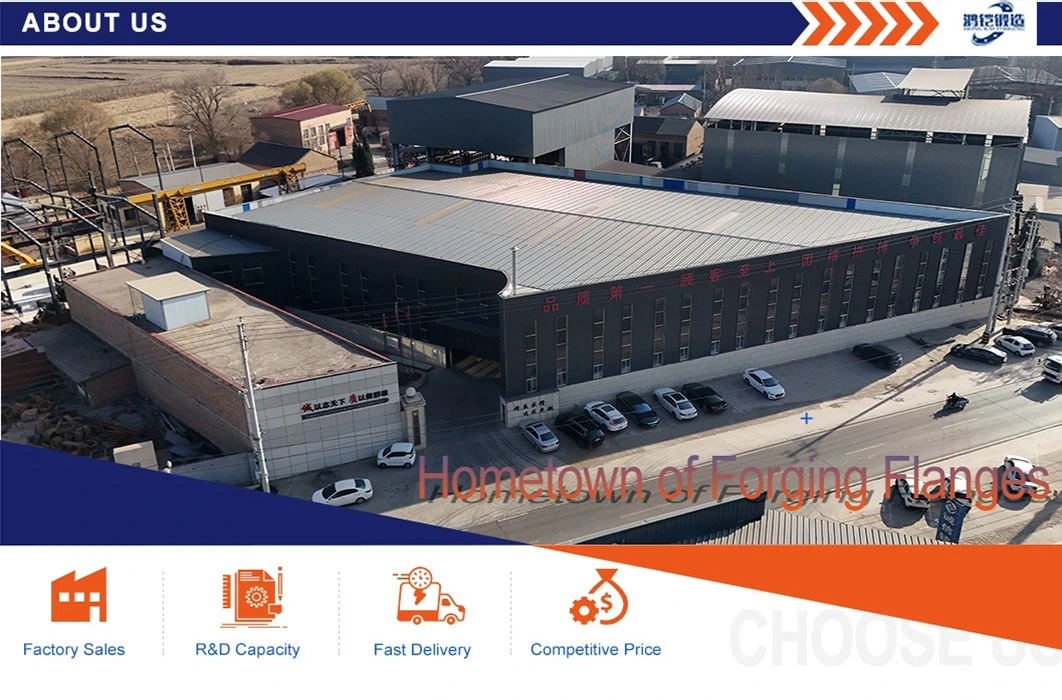

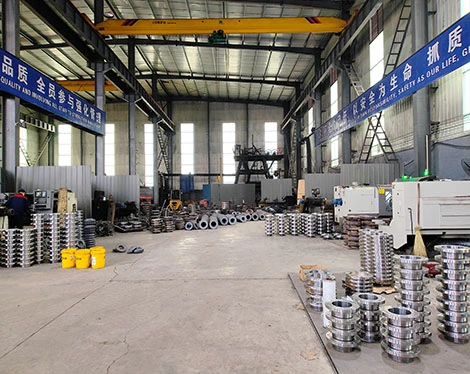

Shanxi HongKai Forging Co., Ltd. was located in Dingxiang County, known as the "Hometown of Forging" in Shanxi Province, which is part of Chinese energy and heavy chemical industrial base. The area boasts convenient transportation, abundant coal and power resources, fast communication, and an excellent environment. The company has three big workshops in total.

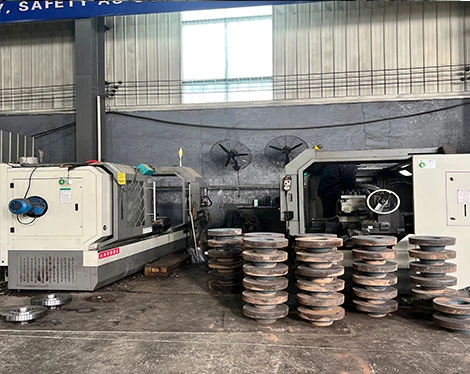

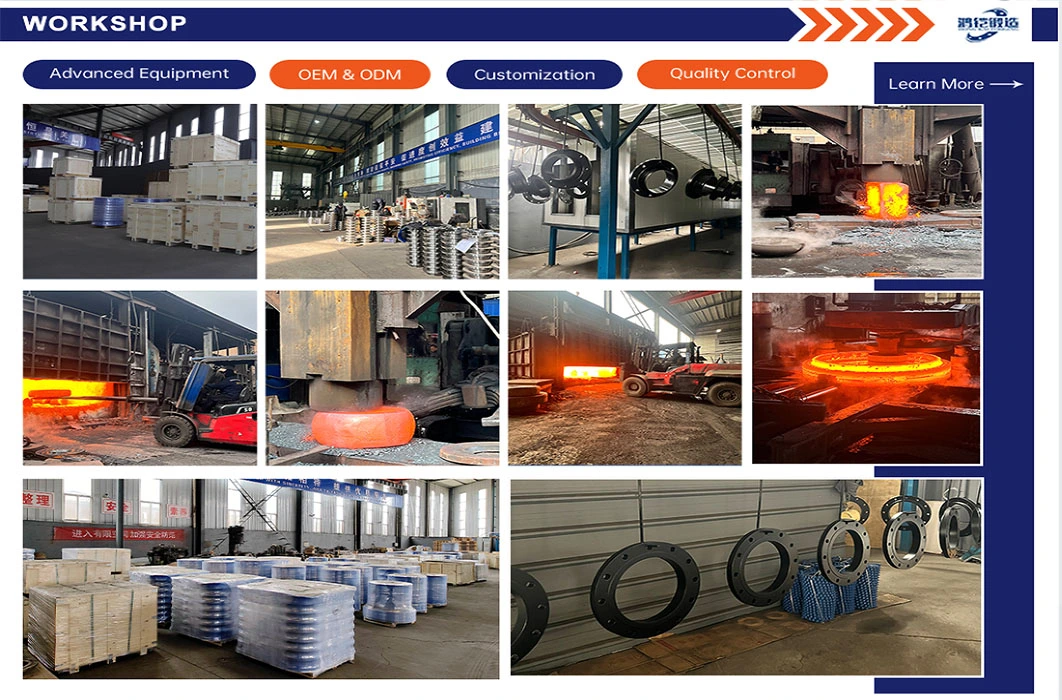

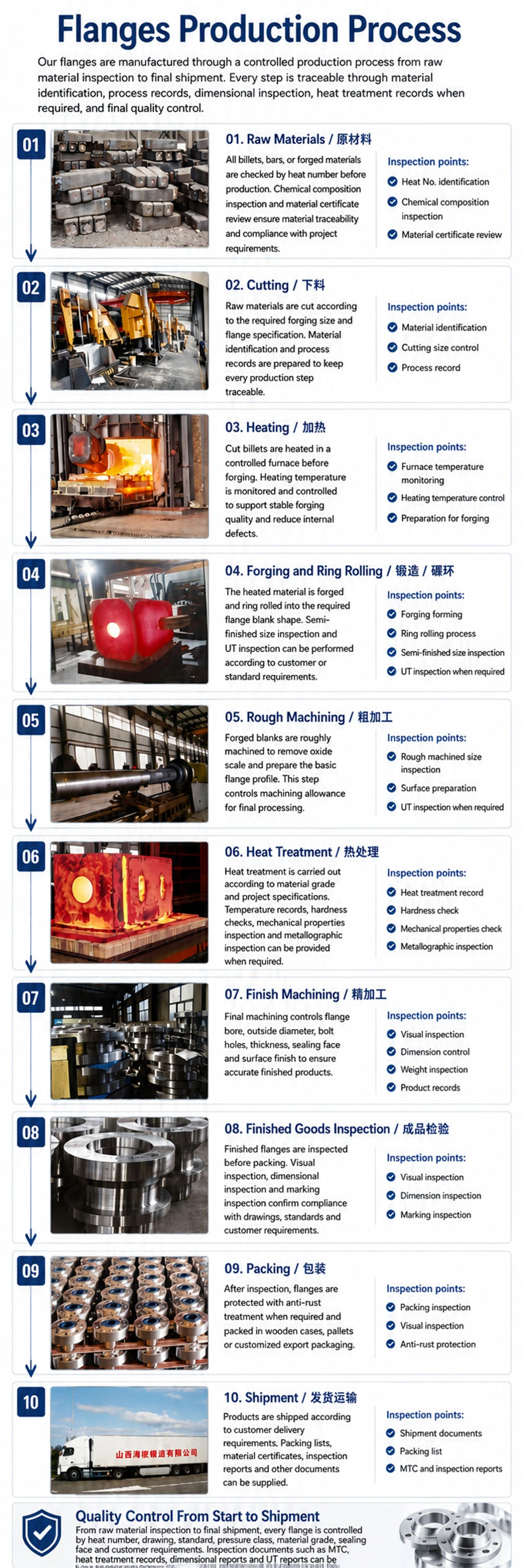

Along with capabilities in forging and heat treatment,Integrated production capabilities including machining, physical and chemical testing, surface treatment, and packaging and shipment. Possessing solid technical expertise, advanced production processes, and a complete quality inspection, reliable after-sales service, for customers worldwide and domestically multiple clients have provided a solid foundation for collaboration.



In addition, we can provide a variety of customized flanges and pipe fittings. Customers can give drawings or samples, and our company will produce them to fit your specific requirements.
