ASME B16.47 Series B Class 150 Blind Flange
/ ASME / ANSI B16.47

ASME B16.47 Series B Class 150 Blind Flange

Dimensions: NPS 26" to NPS 60", Customized Sizes Available
Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Thickness: According to ASME B16.47 Series B Class 150
Standard: ASME B16.47 Series B
Pressure Class: Class 150
Flange Type: Blind Flange
Flange Face Type: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) upon request
Connection: Bolted Connection

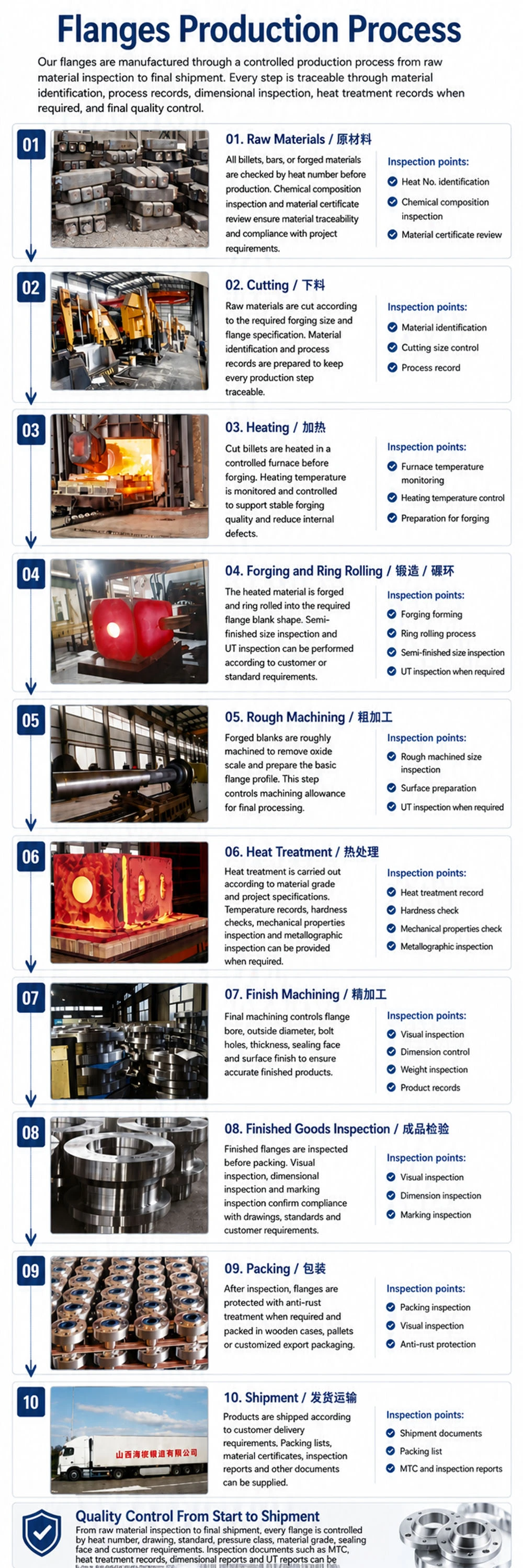

Manufacturing Process: Forging and Machining
Product Description

ASME B16.47 Series B Class 150 Blind Flanges

ASME B16.47 Series B Class 150 Welding Neck Flanges

In line with ASME standards, HONGKAI offers B16.47 Series B Class 150 Blind Flanges. The table below shows the exact sizes of the flanges. When HONGKAI makes flanges, we make sure that they are exactly the right size according to the ASME standard. You can use these flanges in the oil and gas, petrochemical, and power generation industries.

We also offer custom services to meet the needs of customers who need different types of flanges and holes. Please don’t hesitate to get in touch with our professional team if you have specific technical or design needs. We will do our best to meet your needs.

Tags: ASME B16.47, Blind Flanges, Class 75, Series B

Inquiry/Request Sample For Free

Customized Flanges

ASME B16.47 Series B Class 150 Blind Flange

Class 150 dimensions | ASME B16.47 Series B Flange

Nominal Pipe Size Outside Diameter (O) Bolt Circle (W) Raised Face Diameter (R) Number of Holes Diameter of Holes Minimum Thickness (T) Approximate Weight (lbs)
26 30.94 29.31 28.00 36 0.88 1.75 375
28 32.94 31.31 30.00 40 0.88 1.88 455
30 34.94 33.31 32.00 44 0.88 2.00 545
32 37.06 35.44 34.00 48 0.88 2.12 648
34 39.56 37.69 36.25 40 1.00 2.25 782
36 41.62 39.75 38.25 44 1.00 2.31 890
38 44.25 42.12 40.25 40 1.12 2.50 1090
40 46.25 44.12 42.50 44 1.12 2.62 1247
42 48.25 46.12 44.50 48 1.12 2.69 1393
44 50.25 48.12 46.50 52 1.12 2.81 1579
46 52.81 50.56 48.62 40 1.25 2.94 1825
48 54.81 52.56 50.75 44 1.25 3.06 2045
50 56.81 54.56 52.75 48 1.25 3.18 2284
52 58.81 56.56 54.75 52 1.25 3.31 2547
54 61.00 58.75 56.75 56 1.25 3.44 2848
56 63.00 60.75 58.75 60 1.25 3.56 3145
58 65.94 63.44 60.75 48 1.38 3.68 3560
60 67.94 65.44 63.00 52 1.38 3.81 3913
  • All dimensions are in inches.
  • These flanges will be furnished with a 1/16″ raised face unless otherwise specified. For more alternate flange facings, please click here!

 Blind Flange

ASME B16.47 Series B Class 150 Welding Neck Flanges



‌A blind flange, also known as a blind plate, is a flange without main hole, used to close the end of a pipe system or as an end cover for equipment such as valves and pumps. ‌A blind flange has the functions of blocking the end of a pipe and facilitating the removal of debris from the pipe. Similar to the head and pipe cap, a blind flange can also serve as an isolation and cut-off function, but it has good sealing performance and is suitable for systems that require complete isolation‌.





The structure of a blind flange includes a round or square metal sheet, one side of which has a flange surface with an outer diameter and inner diameter matching the corresponding pipe size and with several bolt holes; the other side is a smooth sealing surface. When installed on the pipe, it is fixed to the adjacent flange by bolts and nuts to form a completely closed break‌.



learn more

ASME B16.47 FLANGE CLASSES

Choose The Pressure Class Below​​​​​​​

About HongKai

​​​​​​​ASME B16.47 Series B Class 150 Welding Neck Flanges

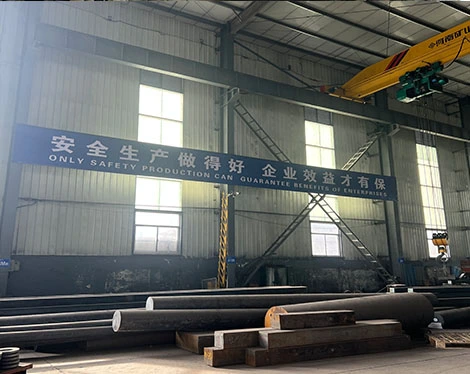

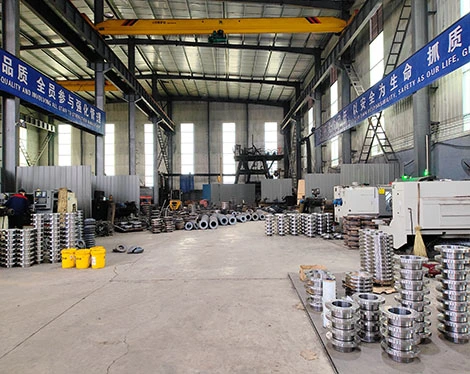

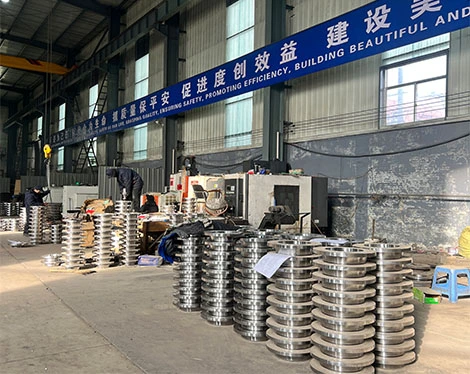

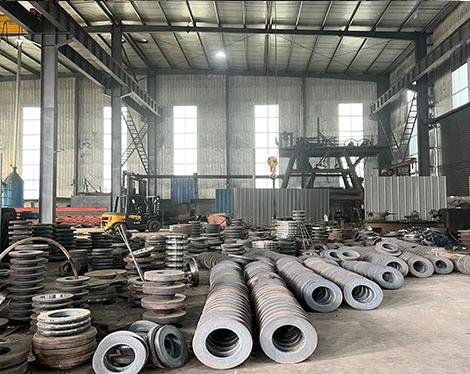

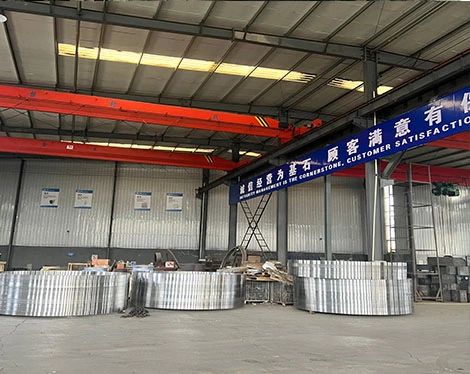

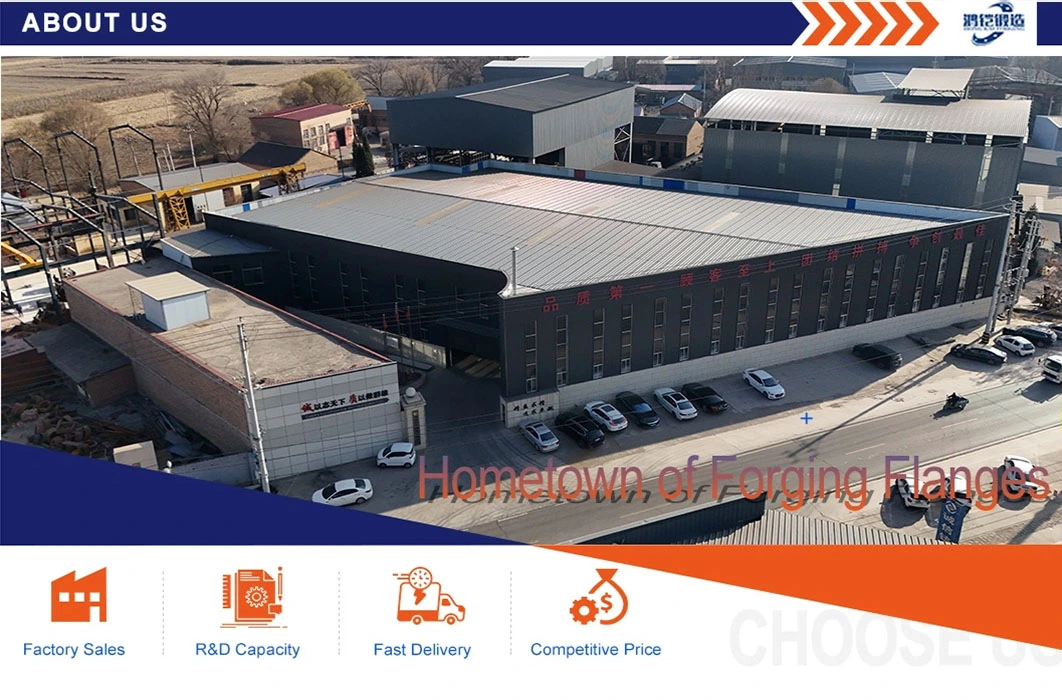

Shanxi HongKai Forging Co., Ltd. was located in Dingxiang County, known as the "Hometown of Forging" in Shanxi Province, which is part of Chinese energy and heavy chemical industrial base. The area boasts convenient transportation, abundant coal and power resources, fast communication, and an excellent environment. The company has three big workshops in total.

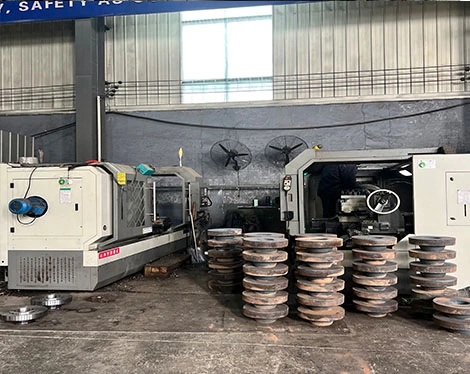

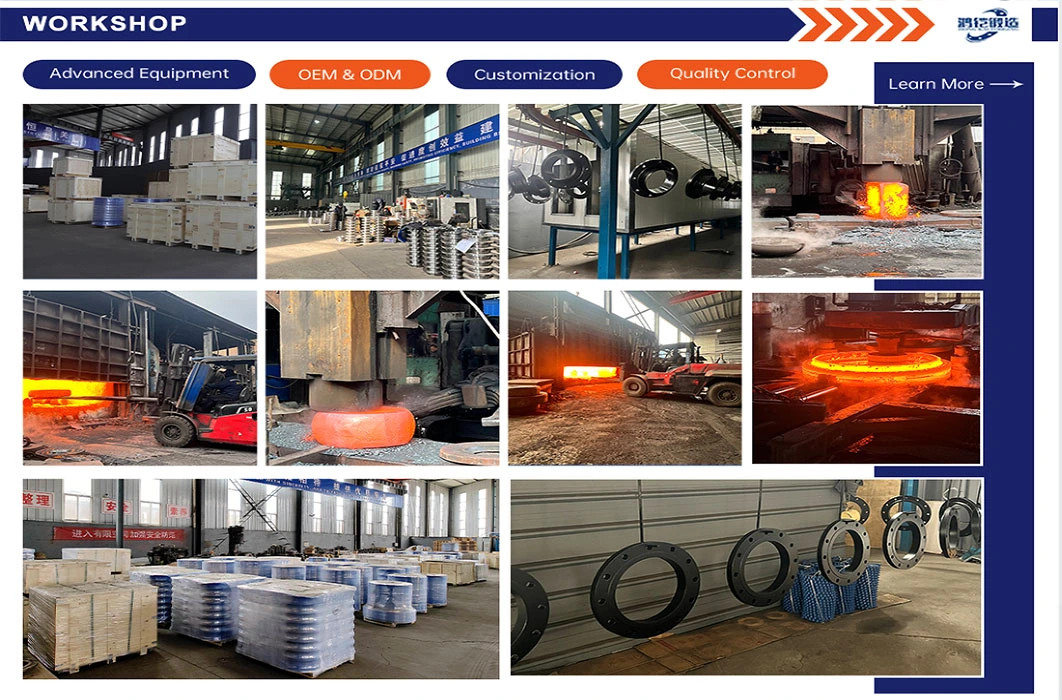

Along with capabilities in forging and heat treatment,Integrated production capabilities including machining, physical and chemical testing, surface treatment, and packaging and shipment. Possessing solid technical expertise, advanced production processes, and a complete quality inspection, reliable after-sales service, for customers worldwide and domestically multiple clients have provided a solid foundation for collaboration.



In addition, we can provide a variety of customized flanges and pipe fittings. Customers can give drawings or samples, and our company will produce them to fit your specific requirements.
