ASME B16.47 Series B Class 150 Welding Neck Flange
/ ASME / ANSI B16.47

ASME B16.47 Series B Class 150 Welding Neck Flange

Dimensions: NPS 26" to NPS 60", Customized Sizes Available
Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Thickness: According to ASME B16.47 Series B Class 150
Standard: ASME B16.47 Series B
Pressure Class: Class 150
Flange Type: Welding Neck Flange
Flange Face Type: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) upon request
Connection: Butt Weld
Manufacturing Process: Forging and Machining
Product Description

ASME B16.47 Series B Class 150 Welding Neck Flanges

ASME B16.47 Series B Class 150 Welding Neck Flanges

In line with ASME standards, HONGKAI offers B16.47 Series B Class 150 Welding Neck Flanges. The table below shows the exact sizes of the flanges. When HONGKAI makes flanges, we make sure that they are exactly the right size according to the ASME standard. You can use these flanges in the oil and gas, petrochemical, and power generation industries.

We also offer custom services to meet the needs of customers who need different types of flanges and holes. Please don’t hesitate to get in touch with our professional team if you have specific technical or design needs. We will do our best to meet your needs.

Tags: ASME B16.47, Class 150, Series B, Welding Neck Flanges

Inquiry/Request Sample For Free

Customized Flanges

ASME B16.47 Series B Class 150 Welding Neck Flanges

Class 150 dimensions | ASME B16.47 Series B Flange

Nominal Pipe Size Outside Diameter (O) Bolt Circle (W) Raised Face Diameter (R) Number of Holes Diameter of Holes Bore (B) Top of Hub (A) Hub Diameter (X) Minimum Fillet Radius (r) Minimum Thickness (T) Length Thru Hub (Y) Approximate Weight (lbs)
26 30.94 29.31 28.00 36 0.88 Specified by purchaser 26.06 26.94 0.38 1.62 3.50 120
28 32.94 31.31 30.00 40 0.88 Specified by purchaser 28.06 28.94 0.38 1.75 3.75 140
30 34.94 33.31 32.00 44 0.88 Specified by purchaser 30.06 31.00 0.38 1.75 3.94 150
32 37.06 35.44 34.00 48 0.88 Specified by purchaser 32.06 33.06 0.38 1.81 4.25 170
34 39.56 37.69 36.25 40 1.00 Specified by purchaser 34.06 35.12 0.38 1.94 4.34 210
36 41.62 39.75 38.25 44 1.00 Specified by purchaser 36.06 37.19 0.38 2.06 4.62 240
38 44.25 42.12 40.25 40 1.12 Specified by purchaser 38.12 39.25 0.38 2.12 4.88 290
40 46.25 44.12 42.50 44 1.12 Specified by purchaser 40.12 41.31 0.38 2.19 5.06 310
42 48.25 46.12 44.50 48 1.12 Specified by purchaser 42.12 43.38 0.44 2.31 5.25 345
44 50.25 48.12 46.50 52 1.12 Specified by purchaser 44.12 45.38 0.44 2.38 5.38 370
46 52.81 50.56 48.62 40 1.25 Specified by purchaser 46.12 47.44 0.44 2.44 5.69 435
48 54.81 52.56 50.75 44 1.25 Specified by purchaser 48.12 49.50 0.44 2.56 5.88 480
50 56.81 54.56 52.75 48 1.25 Specified by purchaser 50.12 51.50 0.44 2.69 6.06 520
52 58.81 56.56 54.75 52 1.25 Specified by purchaser 52.12 53.56 0.44 2.75 6.19 550
54 61.00 58.75 56.75 56 1.25 Specified by purchaser 54.12 55.62 0.44 2.81 6.38 620
56 63.00 60.75 58.75 60 1.25 Specified by purchaser 56.12 57.69 0.56 2.88 6.56 650
58 65.94 63.44 60.75 48 1.38 Specified by purchaser 58.12 59.69 0.56 2.94 6.88 780
60 67.94 65.44 63.00 52 1.38 Specified by purchaser 60.12 61.81 0.56 3.00 7.06 850
  • (A)All dimensions are in inches.
  • (B)These flanges will be furnished with a 1/16″ raised face unless otherwise specified.
  • (C)Standard Bore will be furnished unless otherwise specified. For more diameter of holes, please click here!



 Weld Neck Flange

ASME B16.47 Series B Class 150 Welding Neck Flanges



A weld-neck flange has a neck and a round tube transition. It is attached to a pipe, so it is also called high neck flange or long neck flange.

Long neck form gives it extra strength and stability, and it can be used in many industrial settings.

It is a type of flange that is made to work in places with high temperatures and pressure. It can be used for oil transportation pipelines, ship pipeline systems, and the transport of raw materials in chemical plants, among other things.

Because it has a high structural strength, good sealing performance, resistance to corrosion, and the ability to withstand high temperature and pressure.

Usually weld neck flange can be divided into neck butt welding flange and neck flat welding flange according to the welding process. You can view various weld neck flanges we have produced through the gallery below.



learn more

ASME B16.47 FLANGE CLASSES

Choose The Pressure Class Below​​​​​​​

About HongKai

​​​​​​​ASME B16.47 Series B Class 150 Welding Neck Flanges

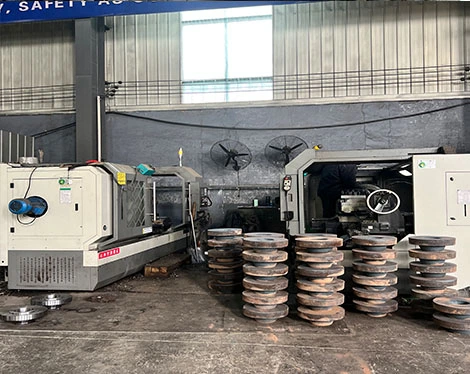

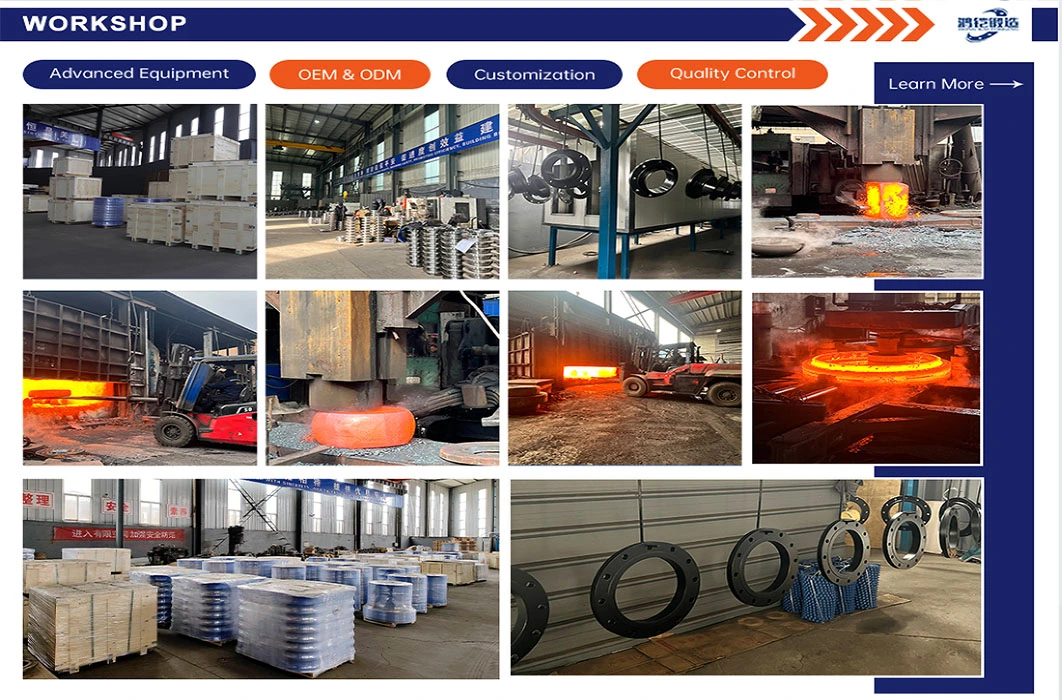

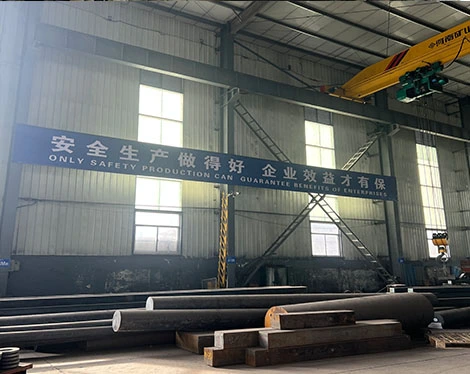

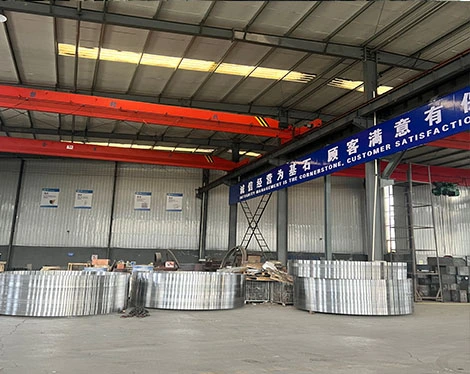

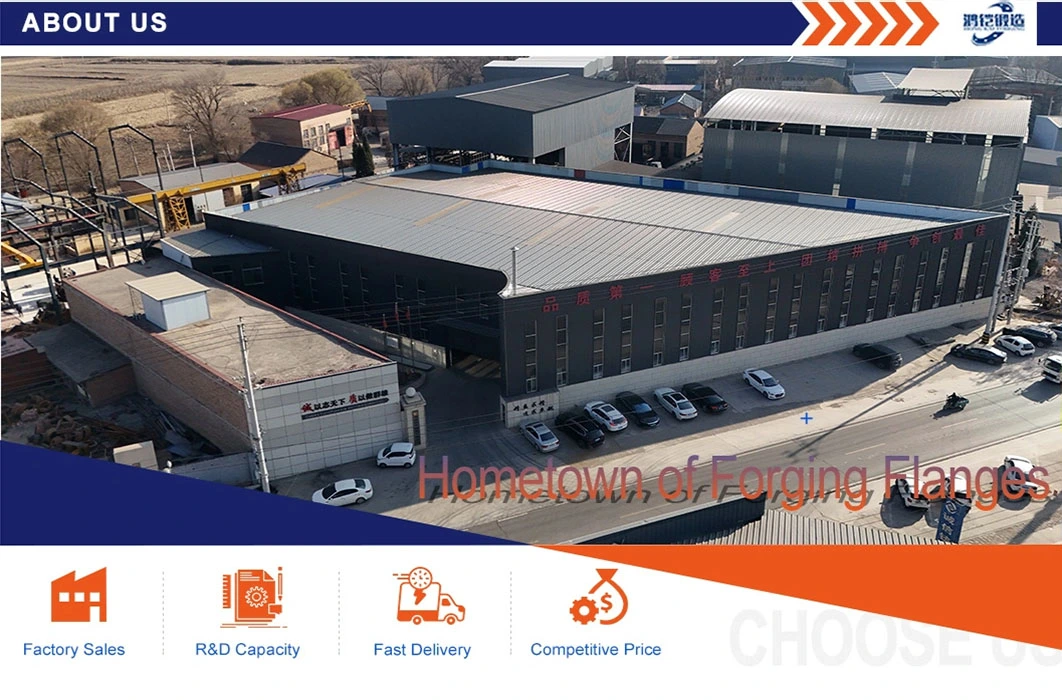

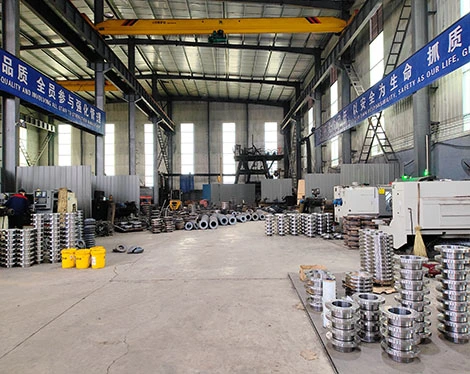

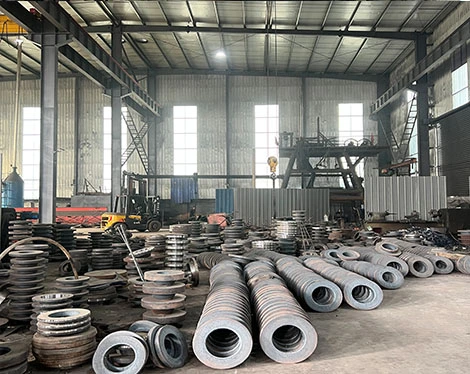

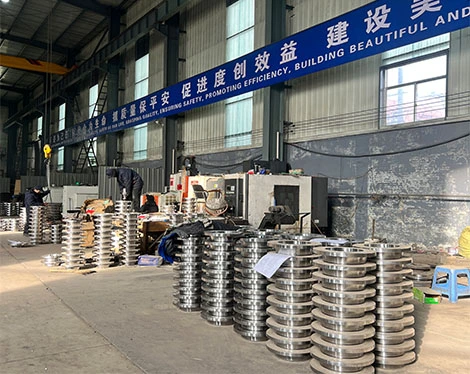

Shanxi HongKai Forging Co., Ltd. was located in Dingxiang County, known as the "Hometown of Forging" in Shanxi Province, which is part of Chinese energy and heavy chemical industrial base. The area boasts convenient transportation, abundant coal and power resources, fast communication, and an excellent environment. The company has three big workshops in total.

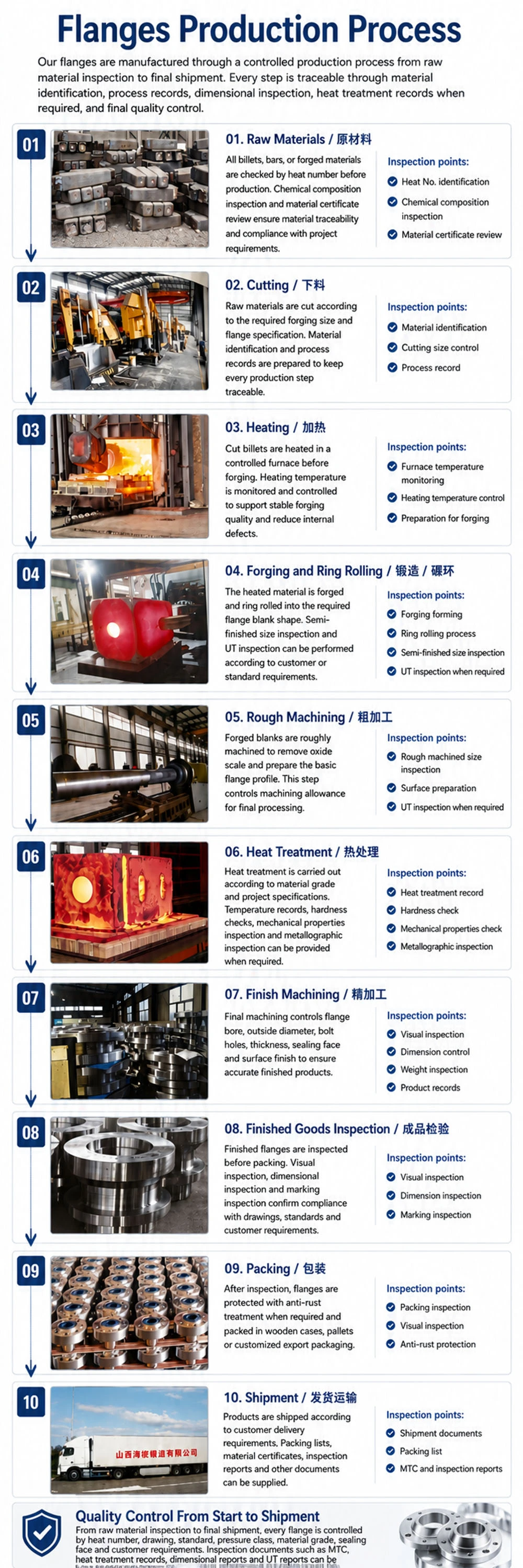

Along with capabilities in forging and heat treatment,Integrated production capabilities including machining, physical and chemical testing, surface treatment, and packaging and shipment. Possessing solid technical expertise, advanced production processes, and a complete quality inspection, reliable after-sales service, for customers worldwide and domestically multiple clients have provided a solid foundation for collaboration.



In addition, we can provide a variety of customized flanges and pipe fittings. Customers can give drawings or samples, and our company will produce them to fit your specific requirements.
