Plate Flange

What is Plate Flange

A Plate Flange is a flat circular flange with a central hole and bolt holes around the body. It is designed to connect pipes, valves, pumps, and other pipeline equipment through welding and bolting.

Compared with weld neck flanges, plate flanges have a simpler structure and lower manufacturing cost. The pipe is usually inserted through the bore of the flange and welded in place, creating a stable and practical connection for general piping systems.

Plate flanges are especially suitable for low-pressure and medium-pressure systems where easy installation, economical cost, and reliable sealing performance are required.

Image Position 2: Main products Banner
图片建议：放一张横幅图，标题为 MAIN PRODUCTS，下面展示 Plate Flange、Weld Neck Flange、Blind Flange、Slip On Flange 等产品。
图片标题：Main Flange Products

Plate Flange Specifications

Additional Specifications:

Face Types: Raised Face (RF), Flat Face (FF), MFM, TG, Ring Type Joint (RJ)

Connection Method: Welding and bolted connection

Surface Finish: 125-250 μin Ra for sealing surfaces

Dimensional Tolerance: According to standard or customer drawing

Custom Service: Non-standard size, special drilling, special thickness available

Plate Flange Materials & Grades

Plate flanges are available in a wide range of materials. The material should be selected according to pipeline medium, working pressure, temperature, corrosion environment, and project standard.

Carbon steel plate flanges are widely used in water supply, drainage, HVAC, construction, and general industrial systems. Stainless steel plate flanges are suitable for chemical, food, pharmaceutical, and corrosive environments. Alloy steel and duplex materials can be used for higher temperature, higher pressure, or special working conditions.

Plate Flange Dimensions

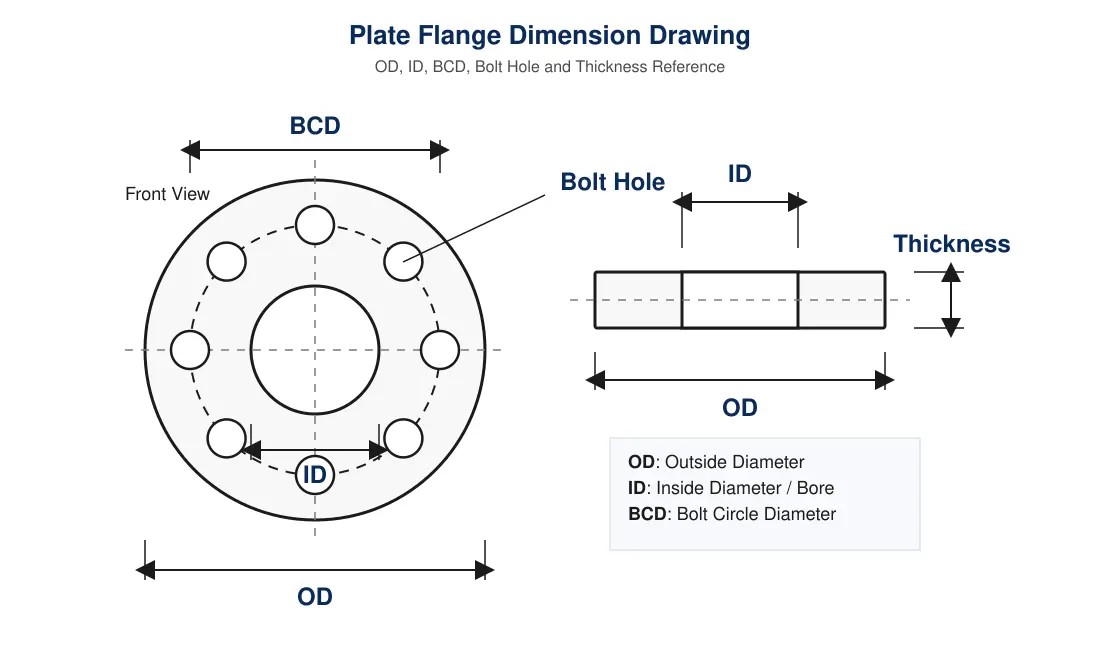

Plate Flange Dimension Drawing with OD ID BCD Bolt Hole and Thickness

Standardized plate flanges can be manufactured according to standard dimensions or customer drawings. Key dimensions include outside diameter, inside diameter, flange thickness, bolt circle diameter, bolt hole diameter, number of bolt holes, and sealing face type.

Advantages of Plate Flange

Cost-Effective Connection

Plate flanges have a simple structure and lower production cost, making them suitable for large-volume pipeline projects.

Easy Installation

The pipe can be inserted through the flange bore and welded in position. This installation method is simple and efficient.

Flexible Standard Options

Plate flanges can be supplied according to EN, DIN, BS, JIS, ANSI, GOST, and customer drawings.

Wide Material Selection

Carbon steel, stainless steel, alloy steel, duplex steel, nickel alloy, and other special materials are available.

Good Sealing Performance

With accurate machining and suitable sealing face treatment, plate flanges provide stable sealing for low-pressure and medium-pressure pipeline systems.

Reduced Maintenance Cost

The simple structure makes inspection, replacement, and maintenance easier during long-term pipeline operation.
